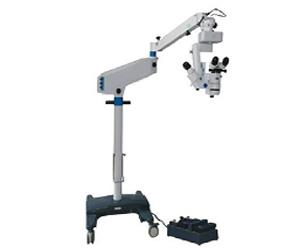

It is a double binocular operation microscope designed for two men.Assistant binocular can also be switched as opponent binocular.It is applicable in ophthalmic surgery and hand surgery.
Characteristics:
·Germany lenses effectively reduces the optical aberration of main&assistant microscope and improves the image clarity and field of view.
·All the lens are multi-coated,mildewproof,anti-reflective.
·Equipped with three different objective lenses and applicable in ophthalmic surgery and hand surgery.
·Oblique illumination can also be used as slit illumination and slit width is adjustable.
·Internal beam splitter can be conneacted with teaching equipment and CCD system.
Specifications:
Eyepiece Magnifications 12.5×/18B
Adjustable Diopter ±7D
Adjustable Range of Pupil Distance 50mm～75mm
Magnifications for Main Microscope f200: 4X 6X 10X 16X 25X
f250: 3.2X 5X 8X 12.8X 20X
f300:2.7X 4.2X 6.7X 11X 17X
Magnifications for Assitant Microscope f200: 6X 10X 16X
f250: 5X 8X 12.8X
f300: 4.2X 6.7X 11X
Depth of Field 2mm ～ 12mm
Maximal Resolution 112 LP/mm
Illumination Source 12V/100W， cold reflection halogen bulb for medical use
Illumination Type 6°+0°coaxial illumination of cold light sourceå’Œ25°Oblique Illumination (It can be used as slit illumination) Slit Width is adjustable,and its angle is 360°rotation.
Coaxial Illumination ≥50000lx
Oblique Illumination ≥45000lx
Reaching Radius of Arm 1040mm
Adjustable Vertical Range 850mm～1350mm
Fine Focusing Speed and Range ≤2mm/s，≥50mm
Speed for X/Y and Range ≤2mm/s，50mm×50mm
Voltage AC220V±22V/50Hz±1Hz、 AC110V±11V/60Hz±1Hz
Power 330VA
Fuse AC250V T4.0A、AC125V T8.0A
Electrical Safety Standard Executive Standard: GB9706.1-2007、type I

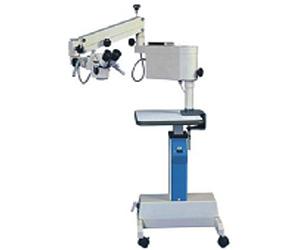

The product is a double binocular operation microscope designed for two men.It has excellent optical performance
Characteristics:
·Unique optical balanced technology effectively improves the color reversion and reduces surgeon’s tireness
in operation.
·Imported optical lens reduces the optical aberration and greatly improve the image clarity and field of view.
• Fine focusing knob is under the bottom of assistant binocular. The image of the assistant’s microscope can be focused independently of the main surgeon, to avoid different diopters.
·Adjustment of magnifications,focusing,translation and turning on/off are all operated by the foot switch
·Mildewproof technology is applied to protect the lenses.
·Independent electrical control box has the function of automatical diagnosis,which is very convenient for installation and repairing.
·20°oblique illumination can also be used as slit illumination.Slit width is continuously adjustable and slit angle is 360°rotation.
Specifications:
Eyepiece Magnifications 12.5×/18B
Objective Lens f=200
Working Distance 190mm
Magnifications for Main Microscope 4×、6×、10×、16×、25×
Magnifications for Assistant Microscope 6×、10×、14×
Diameter of Field F58mm、F38mm、F23mm、F14mm、F9mm
Adjustable Diopter ±7D
Adjustable Range for Pupil Distance 50mm～75mm
Depth of Field 2mm ～ 18mm
Maximal Resolution 119 LP/mm
Focus for Assistant Microscope ≥30mm
Illumination Source 12V/100W，cold reflection halogen bulb for medical use
Illumination Type 6°+0°coaxial illumination of cold light source and 20°Oblique Illumination (It can be used as slit illumination) Slit Width is adjustable
Coaxial Illumination ≥50000lx
Oblique Illumination ≥45000lx
Reaching Radius of Arm 1240mm
Adjustable Vertical Range 850mm～1350mm
Fine Focus Speed and Range ≤2mm/s，≥50mm
Speed for X/Y and Range ≤2mm/s，50mm×50mm
Voltage AC220V±22V/50Hz±1Hz、 AC110V±11V/60Hz±1Hz
Power 330VA
Fuse AC250V T4.0A、AC125V T8.0A
Electrical Safety Standard Executive standard :GB9706.1-2007、Class I

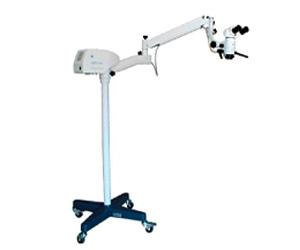

Compact structure and complete functions.
Suitable for ophthalmology,ENT ,surgery,etc
Characteristics:
•Compact structure and complete functions.
•4×～24×zoom magnifications,horizontal movement of foot control and fine focusing.
•Germany optical lens ensure the sharp image and even field of view.
•Applied in operations and fine examinations of ophthalmology,ENT ,surgery,etc.
Specifications:
Eyepiece Magnification 12.5×/16B
Adjustable Diopter ±6D
Adjustable Range for Pupil Distance 50mm～75mm
Visual Angle of Ocular 30°ï½ž90°(Eyepiece moving between 0°ï½ž180°is optional )
Magnifications of Main Microscope 4×～24×（F41.5mm～F7.5mm）
(diameter of field of view)
Focus of Big Objective Lens f=200（f=175/250/300 is optional）
Maximal Resolution 119LP/mm
Field of View 2mm～18mm
Working Distance 190mm
Illumination Source 15V/150W，Medical Cold-reflection Halogen Bulb
Illumination Type 6°+0° Coaxial Illumination
Coaxial Illumination ≥50,000lx
Filters Orange filter（cobalt filter is optional）
Reaching Range of Arm 1020mm
Adjustable Vertical Range ±250mm
Fine Focus Range and Speed 30mm，≤2mm/s
Speed for X-Y and Range 50mm×50mm，≤2mm/s
Voltage AC220V±10% / 50Hz±1Hz、AC110V±10% / 60Hz±1Hz
Power 200VA
Fuse T4.0AL 250V (51S-040H)、T8.0AL 125V (51S-080L)
Electrical Safety Standard Executive Standard:GB9706.1-2007、Class I

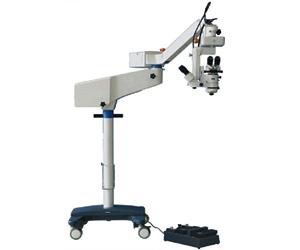

The microscope is an advanced double binocular operation microscope designed for two men, ZOOM magnification and foot switch.
Characteristics:
• ZOOM magnifications for main microscope, 4X～25X continuously adjustment.
• Fine focusing knob is the bottom of assistant binocular. The image of the assistant’s microscope can be focused independently of the main surgeon, to avoid the different diopters.
• Germany optics gives the surgeon a bright, balanced, and fine image.
• Apochromatic technology used in the optical design, ensures coaxial light focus and makes a clearer field of view.
• Microscope head and arm can be moved freely by using the spring balanced system; locking device of the microscope arm can keep patients away from the lens in a safe distance.
• Independent electrical control box has the function of automatic diagnosis,which brings great convenience for installation and repair if necessary.
•Accessories:Teaching Tube, CCD System and Operation Microscope Image System.
Specifications：
Eyepiece Magnifications 12.5×/18B
Objective Lens f=200
Working Distance 170mm
Magnification for Main Microscope 4.6×～27× motorized and manual control
continuous magnification
Magnification for Assistant Microscope 6×、10×、16×
Diameter of Field F4646+46mm～F8.58.588.58mm
Adjustable Diopter ±7D
Adjustable Range for Pupil Distance 50mm ～ 75mm (main microscope is 45mm ～ 80mm)
Field of View 2mm ～ 18mm
Maximal Resolution 119 LP/mm
Focus for Assistant Microscope ≥30mm
Illumination Source 12V/100W,cold reflection halogen lamp for medical use
Illumination Type 6°+0°coaxial illumination of cold light source, 26°oblique illumination
Coaxial Illumination ≥80000lx,1～9level,panel operated
Oblique Illumination ≥60000lx,1～9level, panel operated
Reaching Radius of Arm 1230mm
Adjustable Vertical Range 880mm～1420mm
Fine Focusing Speed and Range ≤2mm/s，≥50mm
Speed for X/Y and Range ≤2mm/s，50mm×50mm
Voltage AC220V±22V/50Hz±1Hz、 AC110V±11V/60Hz±1Hz
Power 170VA
Fuse AC250V T4.04.0444.0000A 、AC1250V T8.0588.0A
Electrical Safety Standard Executive standard:GB9706.1-2007,Class I

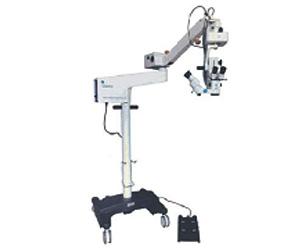

The Microscope is an advanced double binocular operation microscope designed for two men, with the illumination source of 100W medical Xenon lamp and -2°+6°coxial illumination.It is applicable in various complicated operations.
Characteristics:
•It provides an amazingly clear, fine image by using Xenon light source.
•It gives you a brilliant resolution for observing the posterior capsule of lens. Using -2 ° reflection prism, it increase the depth of field and improves the red reflex.
•Fine focusing knob is under the bottom of assistant binocular. The image of the assistant’s microscope can be focused independently of the main surgeon, to avoid the different diopters.
• Germany optics gives the surgeon a bright, balanced, and fine image.
• Apochromatic technology used in the optical design, ensures coaxial light focus and makes a clearer field of view.
Specifications:
Eyepiece Magnification 12.5×/18B
Objective Focus 200m
Working Distance 170mm
Magnification for Main Microscope Zoom, 4.6×-27×, motorized and manual control
Continuous Magnification
Magnification for Assistant Microscope 6×、10×、16×
Diameter of Field φ46mm ~φ8.5mm
Adjustable Diopter ±7D
Adjustable range for Pupil Distance 50mm ～ 75mm (main microscope is 45mm ～ 80mm)
Maximal Resolution 126LP/mm
Focus for Assistant Microscope ≥30mm
Illumination Source 120V/100W Medical Xenon Lamp and 12V/100W Halogen Lamp. Dual-source hand- switched
Illumination Type 6°+2°Coaxial illumination, 26°oblique illumination
Filter UV-IR filter， yellow spot protection filter，redfree,GG435，GG475
Coaxial Illumination ≤1800001x(xenon); ≥60000lx(Halogen),1-99 level; Foot/Panel operated
Oblique Illumination ≤1800001x(xenon); ≥60000lx(Halogen),1-99 level; Foot/Panel operated
Reaching Range of Arm 1230mm
Adjustable Vertical Range 925mm ～ 1465mm
Fine Focusing Speed and Range ≤2mm/s，≥45mm
Speed for X/Y and Range ≤2mm/s，50mm×50mm
Voltage AC220V±22V/50Hz±1Hz、 AC110V±11V/60Hz±1Hz
Power 280VA
Fuse AC250V T4.0A、AC125V T8.0A
Electrical Safety Standard Executive standard:GB9706.1-2007

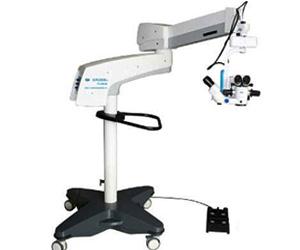

Characteristics:
• Electromagnetic lock and balance technology of the microscope ensure the easy operation and stable orientation.
• 6°±2°coaxial illumination results in the stronger red light reflection and sharper image of posterior capsula.
• The cold light source is bright and uniform enough, which has no harm to tissue.
• Germany optics and Apochromatic technology ensure clear field of view and high resolution.
• Retinal aspherics and BIOM added on objective could meet the demand of posterior operation.
•The equipment is applied not only in ophthalmic operation,but also in neurosurgical,ENT, Cardio-Thoracic Surgical operations, etc.
Specifications:
Eyepiece Magnification 12.5×/18B
Adjustable Diopter ±6D
Adjustable Range for Pupil Distance 55mm～75mm
Magnifications of Main Microscope 4.6×～27×（F8.5～F46 mm）zoom magnification
Magnifications of Assistant Microscope 6×、10×、16×
Focus f=200mm
Optional Objectives f=250mm/300mm/350mm/400mm
Field of View 2.5mm～18mm
Working Distance 195mm
Maximal Resolution 126 LP/mm
Illumination Source 15V/150W,medical cold-reflection halogen lamp
Illumination Type 6°coaxial illumination and 6°±2°coaxial illumination
Coaxial Illumination ≥60000lx
Filters UV&IR filter，yellow spot protection filter，redfree，GG435，GG475
Maximum Height of Microscope 1710mm
Reaching Radius of Arm 1320mm
Adjustable Vertical Range 710mm~1310mm
Fine Focus Speed and Range ≤2mm/s, 50mm
Speed for X/Y and Range ≤2mm/s , 50mm×50mm
Arthrosis Fixation Electromagnetic Lock

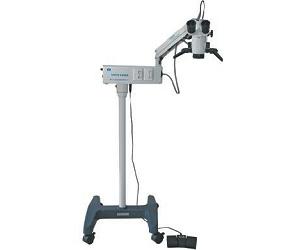

Characteristics:
·Smart and compact body allow easy mobility.
·Three-step magnifications.
·Spring balance system of arm ensures the microscope move freely.
·All the lens are multi-coated,mildewproof and anti-reflective.
·Objectives with different focus and various accessories are optional.It can be applied in ENT,Surgery and Gynaecology.
Specifications:
Eyepiece Magnifications 12.5×
Adjustable Diopter ±5D
Adjustable Range for Pupil Distance 50mm～70mm
Objective Lens f=200
Working Distance 190mm
Magnifications 6X 10X 16X
Illumination Source 12V/100W，cold reflection halogen lamp for medical use
Illumination Type 6°cold light source coaxial illumination
Coaxial Illumination ≥10000lx
Reach Radius of Arm 860mm
Adjustable Vertical Range 850mm～1100mm
Voltage AC220V±10%/ 50Hz±1Hz、AC110V±10%/60Hz±1Hz
Power 120VA
Fuse AC250V T1.25A 、AC125V T2.5A
Electrical Safety Standard Executive Standard:IEC601－1,Class I,Type B

It is the coaxial illumination operation microscope for one man.It is applied in various surgery operations.
Stomatology, Gynecology, Hand surgery and ENT
Characteristics:
·ZOOM magnification system, 4X～21X continuous adjustment.
·Covenient operation benefits from unique lifting turn-off.
·Applicable in Stomatology, Gynecology, Hand surgery and ENT
Specifications:

Eyepiece Magnifications 12.5×
Objective Focus 250mm
Working Distance 240mm
Magnification for Main Microscope 4.5×～26.3×zoom magnification
Diameter of Field F7.7mm～F46mm
Adjustable Diopter ±7D
Adjustable range for Pupil Distance 50mm～80mm
Depth of Filed 2mm～20mm
Maximal Resolution 112 LP/mm
Illumination Source 15V/150W, Halogen
Illumination Type 6°coaxial illumination
Coaxial Illumination ≥30000lx
Reaching Radius of Arm 1210mm
Adjusting Range of Balance Arm 760mm～1360mm
Fine Focus Range 10mm
Voltage AC220V±22V/50Hz±1Hz、AC110V±11V/60Hz±1Hz
Power 170VA
Fuse AC250V T2.0A 、AC125V T4.0A
Electrical Safety Standard Conform to Standard GB9706.1-2007 Class â…

It is a simple coaxial illumination operation microscope for one man.It is portable,compact and applied in mobile hospital.
Characteristics:
·Portable,three-step magnification.
·Spring banlance system of arm ensures the microscope move freely.
·All the lenses are multi-coated,mildewproof and anti-reflective.
Specifications:
Eyepiece Magnification 12.5×
Objective Lens f=200
Working Distance 190mm
Magnifications for Main Microscope 5.3×、8×、12×
Diameter of Field F38mm、F25mm、F17mm
Adjustable Diopter ±7D
Adjustable Range of Pupil Distance 50mm～80mm
Illumination Source 12V/100W，medical cold reflection halogen lamp
Illumination Type 6°+0°Coaxial cold light source illumination
Coaxial Illumination ≥30000lx
Reaching Radius of Arm 870mm
Adjustable Vertical Range 700mm～1100mm
Fine Focusing Range 30mm
Voltage AC220V±V22/ 50Hz±1Hz、AC110V±V11/60Hz±1Hz
Power 120VA
Fuse AC250V T1.25A 、AC125V T2.5A
Electrical Safety Standard Executive Standard: GB9706.1-2007、type I
Packing Volume 0.2m3，1carton
Total Gross Weight 41kg
Optional Accessories:
·10X Eyepiece.
·Table installation parts.
·Video devices(1/2″or 1/4″CCD Camera,CCD Adapter,Beam Splitter and Connecting Cable).
·Straight Binocular,Universal Joint(for ENT).
·Four focus of objective len:f250mm,f300mm,f350mm,f400mm(12.5X eyepiece).
Big Objective Lens Total Magnifications Diameter of Field(mm)
f250mm 4.2X,6.4X,9.6X φ47.5, φ31, φ21
f300mm 3.5X,5.4X,8X φ57, φ38, φ25
f350mm 3X,4.6X,6.8X φ67, φ44, φ30
f400mm 3X,4X,6X φ76

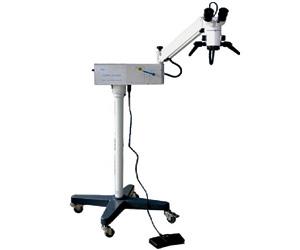

It is a simple coaxial illumination operation microscope for one man.It is portable,compact
Characteristics:
•Optical lens are all multi-coated, mild-proof and anti-reflective. Image is clear and view field is even.
•Illumination system does no harm to tissues by using cold light source fiber. Illumination is sufficient and even.
•Cortical remnants on the posterior capsular can be clearly observed by the 6°+0° coaxial illumination.
•Position screw can protect the arm at any location from moving.
Specifications:
Model YZ20P6
Eyepiece Magnifications 12.5×
Objective Focus 200mm
Working Distance 190mm
Magnification for Main Microscope 5.3×、8×、12× steps
Diameter of Field F38mm、F25mm、F17mm
Adjustable Diopter ±7D
Adjustable range for Pupil Distance 50mm～80mm
Depth of Filed 2mm ～ 18mm
Maximal Resolution 100 LP/mm
Illumination Source 12V/100W,Halogen
Illumination Type 6°+0°cold light coaxial illumination
Coaxial Illumination ≥30000lx
Reaching Radius of Arm 1030mm
Adjusting Range of Balance Arm 750 mm～1150 mm
Fine Focus Range 30mm
Voltage AC220V±22V/50Hz±1Hz、AC110V±11V/60Hz±1Hz
Power 120VA
Fuse AC250V T1.25A 、AC125V T2.5A
Electrical Safety Standard Conform to Standard GB9706.1-2007 Class â…
