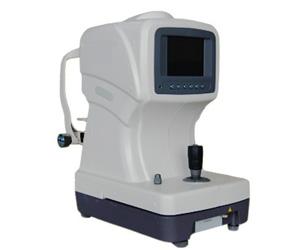

Refractometer Vetex Distance(vd) 0.0,12.0,13.75mm
Sphere Power(SPH) -20.00~+20.00D(in case of VD=12mm)
Cylinder Power(CYL) 0.00~±10.00D(0.12/0.25D Unit)
Axis(AX) 1~1800 (10 Unit)
Cylinder Form -,+,MIX
Pupil Distance(PD) 10~80mm
Minimum Pipul Diameter ï¿ 2.00mm
Keratometry Radius of Curvature 5.0~10.2mm(Increments:0.01mm)
Corneal Power 33.00~67.50D(When corner equivalent refractive
index is 1.337;0.05/0.12/0.25D unit)
(Increments selectable from 0.12,0.25D)
Corneal astingmatism 0.0~-15.00D
(Increments selectable from 0.12,0.25D)
Axis 1~180°ï¼ˆIncrements:1°)
Corneal Diameter 2.0~14.0mm(Increments:0.1mm)
Memory of Data 10 measure value for each right and left eye
Internal printer Uses thermal line printer
Monitor 5.7-inch color TFT LCD monitor
Environmental requirements Operation Temperature:+10 to +35℃
Humidity:30 to 75%RH
Atmospheric pressure:800~1060 hpa
Storage Temperature:-10 to +55℃
Humidity:30 to 75%RH
Atmospheric pressure:700~1060 hpa
Transportation Temperature:-20 to +70℃
Atmospheric pressure:500~1060 hpa
Power supply AC100~240V,50/60HZ
Power consumption Approximately 100VA
Size 480(L)*282(W)*445(H)mm
Weight Approximately 17kg

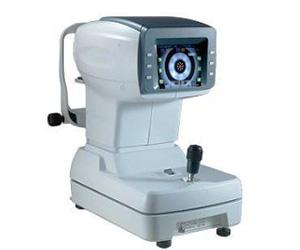

Feathers:
1.The auto refractometer have the function of quick measurement for diopter of 2mm MIN pupil size &laterst TFT
LCD design .
2.Measured mor quikly because the Technology of Build-in Micro process and quick graphic process.
3.Quick measurement for diopter of MIN.pupil size.
4.New design of colorful sreen(5.7" TFT LCD）.
5.Auto fog chart.
6.Pupil distance auto measured available.
7.Choice for vertex distance.

Specification:
Measuring range Spherical -20~+20D(VD=12)0.12Dsteps
Cylinder -8~+8D 0.12Dsteps
Axis 0~180°ï¼Œ1°steps
Pupil Distance 45~85mm,1mm steps
Vertex Distance 0mm,12mm,13.75mm
Min.Pupil Size 2.0mm
Chart AUTO FOG
Display 5.7"TFT LCD
Print THERMAL PRINTER
Power Supply 100~120v/200~240v,50/60Hz

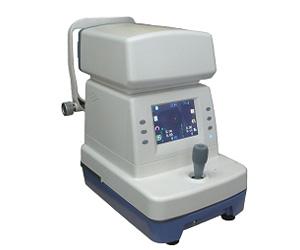

Feathers:
1.The auto refractometer have the function of quick measurement for diopter of 2mm MIN pupil size &laterst TFT
LCD design .
2.Measured mor quikly because the Technology of Build-in Micro process and quick graphic process.
3.Quick measurement for diopter of MIN.pupil size.
4.New design of colorful sreen(5.7" TFT LCD）.
5.Auto fog chart.
6.Pupil distance auto measured available.
7.Choice for vertex distance.

Specification:
Measuring range Spherical -20~+20D(VD=12)0.12Dsteps
Cylinder -8~+8D 0.12Dsteps
Axis 0~180°ï¼Œ1°steps
Pupil Distance 45~85mm,1mm steps
Vertex Distance 0mm,12mm,13.75mm
Min.Pupil Size 2.0mm
Chart AUTO FOG
Display 5.7"TFT LCD
Print THERMAL PRINTER
Power Supply 100~120v/200~240v,50/60Hz
Dimension 484(L)X282(w)X440(H)mm
Weight about 20kg

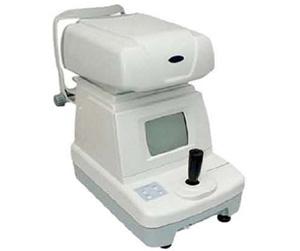

Specification:

It's the first Auto refractometer , black and white screen .
Vertex distance(VD) 0.0mm，12.0mm，13.75mm
Spherical surface .-20.00～＋20.00(VD=12) 0.12/0.25 steps
Cylinder(CYL) 0.00～±8.00D 0.12D/0.25D steps
Axis 0～180℃（variable：1℃）
Astigmatism identification －，＋，±
Pupil distance(PD) 45～85mm , 1mm steps
Chart Auto fog
Display 5" CRT Monitor
Measurable minimum of pupil Φ2.0mm
Data records three times’ records per eye
Built-in printer thermo-sensitive linearity printer
Power supply 100-240V ,50/60HZ
Dimensions 484（L）×282（W）×440（H）mm
Weight Approx. 20kg

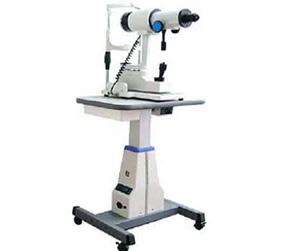

Features:
1.This keratometer was developed under the guidance of optometry center.
2.This instrument can give a precise examination of the radius of curvature of the anterior corneal surface and it also give a exam of axis and diopter of cornea astigmatism.
3.This measurement is utilized to fit contract lenses and to monitor corneal lenses.
4.Keratometer are occasionally used to assist in the recognition of certain corneal abnormalities and to check the radii of curavature of both hard and soft contact lenses.
5.The program can be operated with considerable ease
Specification
Measurement range curvature radius: 5.5-11mm
Dioptor :31-61D
Minimum surface required for measurement:
R=5.5mm Φ1.65mm, R=7.5mmΦ2.36mm R=11mmΦ3.36mm
Whole packing volume :0.235 stere
Total weight: 38kg

Specifications:

Dimension of surveyors : 18x24 mm
Distance of surveyors Staff and cornea : 175mm
Total magnification : 18x
Objectives magnification : 1.2x
Eyepieces magnification :15x
Curvature Radius : 5.5~11mm
Diopter :30-60D
Least graduate : Radius:0.02 mm Diopter : 0.25D
Refractive index : 1.3375
Least Diameter of measure : R= 5.5mm Φ1.65mm,
R=7.5 mmΦ2.3mm , R=11MM Φ4MM
Astigmatism graduate range : 0°~ 180°
Astigmatism graduate alternation : 5°
Illumination bulb: 6V 20W Halogen Bulb
Input Voltage : 220V/110V 50HZ/60HZ
Range of rise or drop of slipway : 0-30mm
Move range of slipway : left and right : 100mm, front and back: 90mm
Fluctuate move range of jaw part :80mm

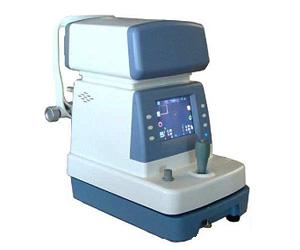

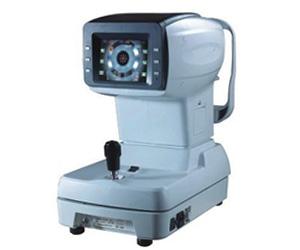

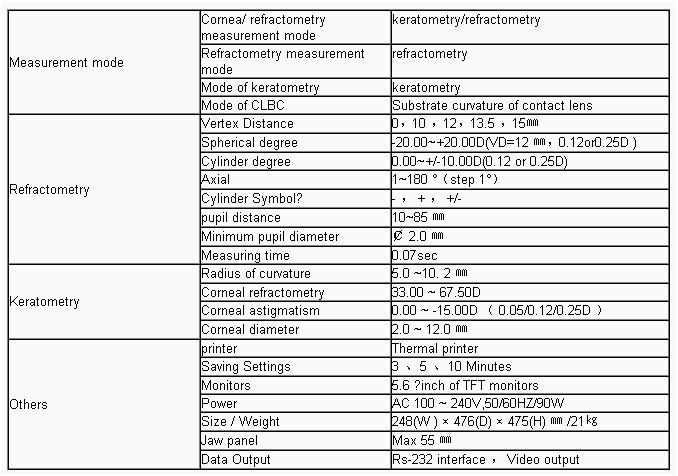

Specifications of Refractometer:

Vetex Distance(vd) 0.0,12.0,13.75mm
Sphere Power(SPH) -20.00~+20.00D(in case of VD=12mm)
Cylinder Power(CYL) 0.00~±10.00D(0.12/0.25D Unit)
Axis(AX) 1~1800 (10 Unit)
Cylinder Form -,+,MIX
Pupil Distance(PD) 10~80mm

Minimum Pipul Diameter ï¿ 2.00mm

Specifications of Keratometer:

Radius of Curvature 5.0~10.2mm(Increments:0.01mm)
Corneal Power 33.00~67.50D(When corner equivalent refractive
index is 1.337;0.05/0.12/0.25D unit)
(Increments selectable from 0.12,0.25D)
Corneal astingmatism 0.0~-15.00D
(Increments selectable from 0.12,0.25D)
Axis 1~180°ï¼ˆIncrements:1°)
Corneal Diameter 2.0~14.0mm(Increments:0.1mm)
Memory of Data 10 measure value for each right and left eye
Internal printer Uses thermal line printer
Monitor 5.7-inch color TFT LCD monitor
