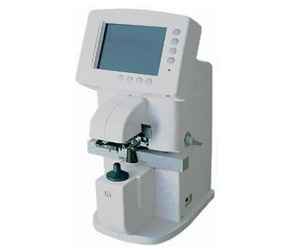

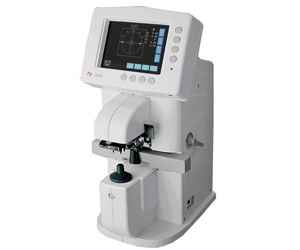

Features:
Large LCD screen clearly shows status and results.
Quick measurement and accurate results.
Various lenses measured available.
Auto memory and auto screen save.
Slim and compact design.
Build-in printer.
external UV part
Specifications:
Sphere measuring range -25~+25D 0.01/0.12/0.25D steps
Cylinder measuring range -10~+10D 0.01/0.12/0.25D steps
Axis measuring range 0°~180° 1°
Add measuring range 0~+9.99D 0.01/0.12/0.25D steps
Prism measuring range 0~6â–³ 0.01/0.12/0.25â–³
PD 40~86mm, 0.5mm steps
lens Diameter ø20~108mm
Display 5.7"LCD/6.4"TFT
Print thermal printer
Power supply 100~240V 50/60HZ

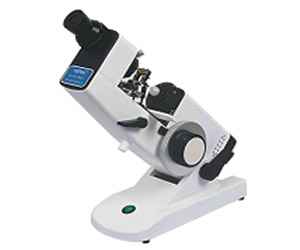

Features:
1.Inclinable Internal-reading lensmeter
2.big observation window
3.±25 measure
Main Technical Indexes
1.Range of measurement:－25D～＋25D
Minimum scale value:－5D～＋5D：0.125D； －5D～－25D、＋5D～＋25D：0.25D
2.Astigmatism axis angle of cylindric lens:0～180°Minimum scale value 1°
3.Prism diopter standard model:0～5△ Minimum scale value 1△
Strengthened Model:0～20△ Minimum scale value 1△
4.Prism basal angle: 0～180° Minimum scale value 1° 180°ï½ž360°Minimum scale value 5°
5.Regulation of ocular visibility:－5D～＋5D
6.Size of lens:F16mm～ F80mm
7. Overall dimensions of device:280mm(L)×150mm(W)×450mm(H)
8.Carton size:350*190*505mm(1pc packing),410*365*560mm(2pcs packing)
9.Net weight:standard model:5.2kg Strengthened Model:5.3kg
10.Gross weight:standard model:6.5kg Strengthened Model:6.6kg
11.Lighting lamp:220V/110V 15W

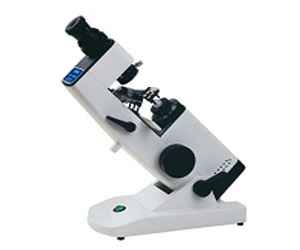

Features:
1.Inclinable Internal-reading lensmeter
2.big observation window
3.±25 measure
Main Technical Indexes
1.Range of measurement:－25D～＋25D
Minimum scale value :－5D～＋5D:0.125D; －5D～－25D、＋5D～＋25D:0.25D
2.Astigmatism axis angle of cylindric lens ：
3.Prism diopter standard model: 0～5△ Minimum scale value 1△
Strengthened Model(with prism compensator):0～20△ Minimum scale value 1△
4.Prism basal angle ： 0～180°Minimum scale value 1°
5. Regulation of ocular visibility:－5D～＋5D
6.Size of lens ： F16mm～ F80mm
7.Overall dimensions of device:280mm(L)×150mm(W)×450mm(H)
8.Carton size:350*190*505mm(1pc packing),410*365*560mm(2pcs packing)
9.Net weight:standard model:5.2kg Strengthened Model:5.3kg
10.Gross weight:standard model:6.5kg Strengthened Model:6.6kg
11.Lighting lamp:220V/110V 15W

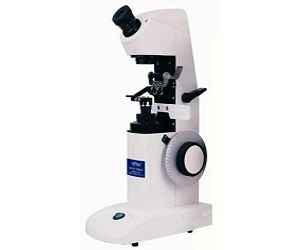

Features:
1.Upright External-reading Lensmeter.
2.big observation window
3.±25 measure
Main Technical Indexes
1.Range of measurement： －25D～＋25D
Minimum scale value： －5D～＋5D：0.125D；
－5D～－25D、＋5D～＋25D：0.25D
2.Astigmatism axis angle of cylindrical lens：0～180°Minimum scale value 1°
3.Prism degree:
Model A :0～5△ Minimum scale value 1△
Model B (with prism compensator):0～20△ Minimum scale value 1△
4.Prism basal angle:0～180°Minimum scale value 1°
5.Range of ocular visibility adjustment：－5D～＋5D
6.Size of measured lens: F16mm～F80mm
7.Overall dimensions:226mm(L)×150mm(W)×390mm(H)
8.Carton size:290*190*445mm(1pc packing),600*400*465mm(4pcs packing)
9.Net weight:Model A :4.2kg, Model B (with prism compensator) :4.3kg
10.Gross weight:Model A 5.2kg,Model B 5.3kg
11.Lamp of illumination： 220V/110V 15W

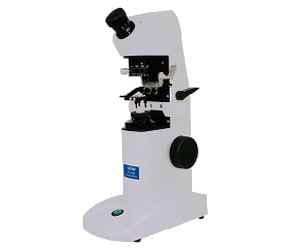

Features:
1.Upright Internal-reading Lensmeter
2.big observation window
3.±25 measure
Main Technical Indexes
1.Range of measurement： －25D～＋25D
Minimum scale value： －5D～＋5D：0.125D；
－5D～－25D、＋5D～＋25D：0.25D
2.Astigmatism axis angle of cylindrical lens：0～180°Minimum scale value 1°
3.Prism degree:
Model A :0～5△ Minimum scale value 1△
Model B (with prism compensator):0～20△ Minimum scale value 1△
4.Prism basal angle:0～180°Minimum scale value 1°
5.Range of ocular visibility adjustment：－5D～＋5D
6.Size of measured lens: F16mm～F80mm
7.Overall dimensions:226mm(L)×150mm(W)×390mm(H)
8.Carton size:290*190*445mm(1pc packing),600*400*465mm(4pcs packing)
9.Net weight:Model A :4.2kg, Model B (with prism compensator) :4.3kg
10.Gross weight:Model A 5.2kg,Model B 5.3kg
11.Lamp of illumination： 220V/110V 15W

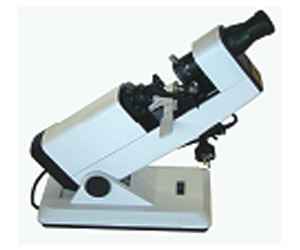

Features :
1.To measure the dioptres for spherical lens and cylinder lens,the axis of cylinder lens,the strength and the baseline direction of shuttle lens,It can also stamp the optical center of lens,the axis of cylinder lens and the base direction of shuttle lens.
2.This Manual lensmeter (Both AC and DC are permitted.Two 5# cells when DC) has clear readings and graduations as well as high objective precision and reliabilities except that it can be operated easily and conveniently.In addition,it has the compensation lens to correct the optical point center.AU the lenses and the made glasses can be measured by it,which,therefore,is a required and ideal measuring instrument for glasses manufacturers,glasses stores and ophthalmological hospitals.
Technical parameter:
1.Eyepiece focusing range:±5D
2.The top point dioptre measuring range:-25D~+25D
3.The minimum measuring square value:0.125D
4.The shuttle lens measuring range:10â–³
5.The shuttle lens square value:1â–³
6.The cylinder lens axial range:0-180°
7.The cylinder lens axial square value:1°
8.The maximum diameter of the measured lenses:100mm
9.The lighting:AC 220v/110v-6v DC 3v

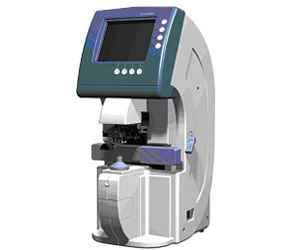

Functions:
Cloor LCD display screen: Measurement results and setting image can be displayed on a easy-to-view color screen.
Various lenses measured available.
More quick measurement and accurate results
build-in printor
external UV part
Specifications :　
Sphere measuring range -25∽+25D unit0.01/0.12/0.25D
Cylinder measuring range -9.99∽+9.99D unit0.01/0.12/0.25D
Axis measuring range 0°âˆ½180° unit1°
Add measuring range 0∽+9.99D unit0.01/0.12/0.25D
Prism measuring range 0∽6△ unit0.01/0.12/0.25△
PD measuring range40∽86mm unit0.5mm
lens Diameter ø5~120mm
Display LCD Monitor (5.7inches)（5.7″）
Print thermal printer
Power supply AC100∽120(V)/200∽240(V) 50/60HZ 50VA

Features:

Electron-photo digital display auto-lens meter.
Accuracy measuring result, the error of measuring result within 0.02D in full scale.
Auto-focused measurement, which only takes 0.1Sec. to measure.
Manual written in English & Chinese for election, adjustment of fixed incremental mode.
Measured results display at the picture LCD Screen.
Measured repeatability within 0.02D.
Measuring focus of lens quickly.
Measurement of pupilary distance of lens.
Print result out.
Specifications:
1. Measurement Range
Sphere: -25D--+25D
Cylinder: 0--±10D
Axis Angle: 0—180o (±1o)
Prism: 0--10Δ (0.1Δ)
Step: 0.01D, 0.12D, 0.25D
Pupil Distance: 0~80 mm
Lens Diameter: 80 mm
2. Electrical Specifications
Power Supply: AC 220V, 50Hz
Input Power: 40 W
3. Environment Requirement
Working Environment Temperature: Ambient Temperature
Working Environment Humidity: 70%

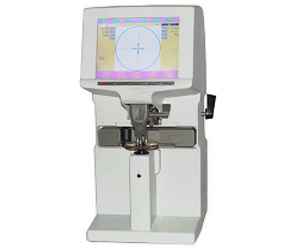

Features:
touch and colorfrl LCD screen clearly shows status and results.
Quick measurement and accurate results.
Various Ienses measured available.
Auto memory and auto screen save.
Slim and compact design.
Build-in printer.
Build-in UV part
Specifications: 　
Sphere measuring range -25~+25D unit0.01/0.12/0.25D steps
Cylinder measuring range -9.99~+9.99D unit0.01/0.12/0.25D steps
Axis measuring range 0°~180° unit1° steps
Add measuring range 0~+9.99D unit0.01/0.12/0.25D
Prism measuring range 0~6â–³ unit0.01/0.12/0.25â–³
PD measuring range40~86mm unit0.5mm
Print thermal printer
Power supply AC100∽120(V)/200∽240(V) 50/60HZ 50VA
Dimensions 220(W)*320(D)*430(H)mm
Weight ∽7kg
